【VisionFive 2 Lite 单板计算机】物联网环境监测终端
本文介绍了昉·星光 VisionFive2 Lite 单板计算机结合盛思锐 SEN66 传感器套件实现环境气体监测，并通过 MQTT 协议上传至 Home Assistant 智能家居平台，实现物联网环境监测终端的项目设计。
项目介绍
-
准备工作：硬件连接、软件包安装、Docker部署、EMQX和HomeAssistant平台部署；
-

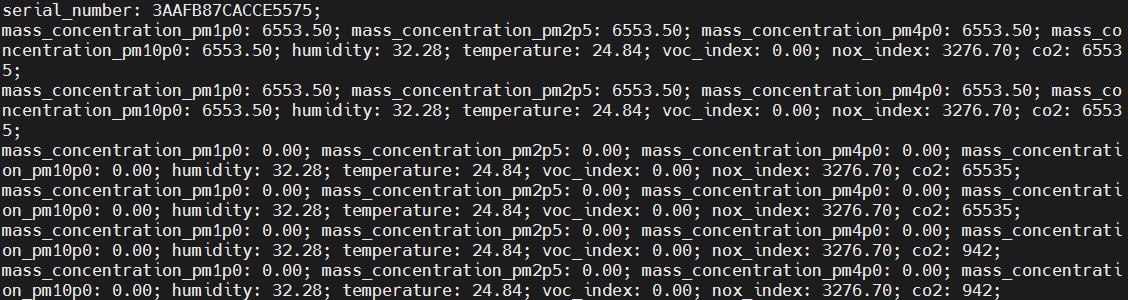

工程测试：加载官方 Demo 例程，实现 SEN66 传感器数据终端打印；
-
MQTT：结合 MQTT 协议，实现传感器数据上传至 EMQX 服务器平台，并远程读取；
-

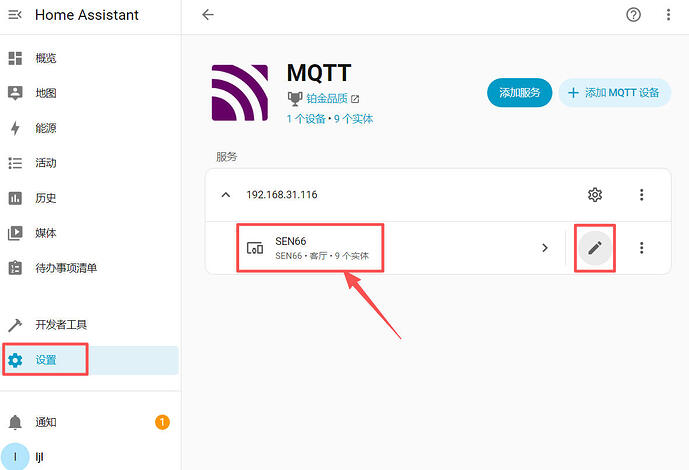

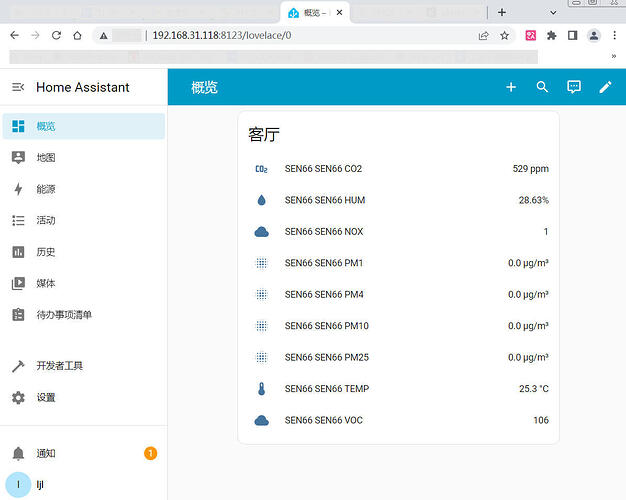

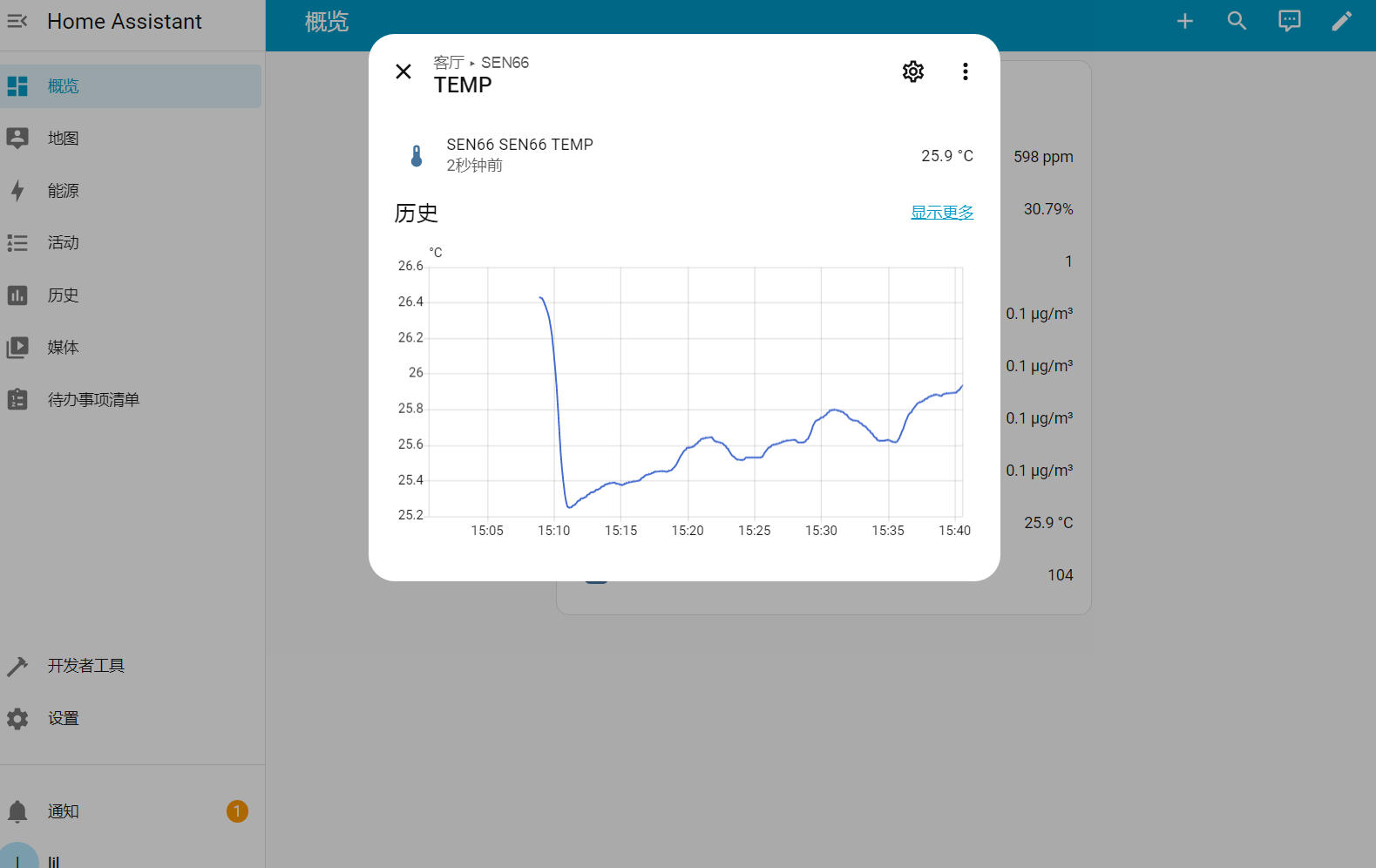

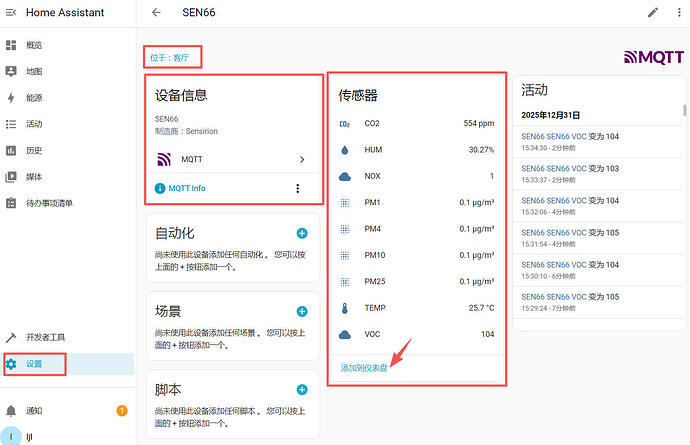

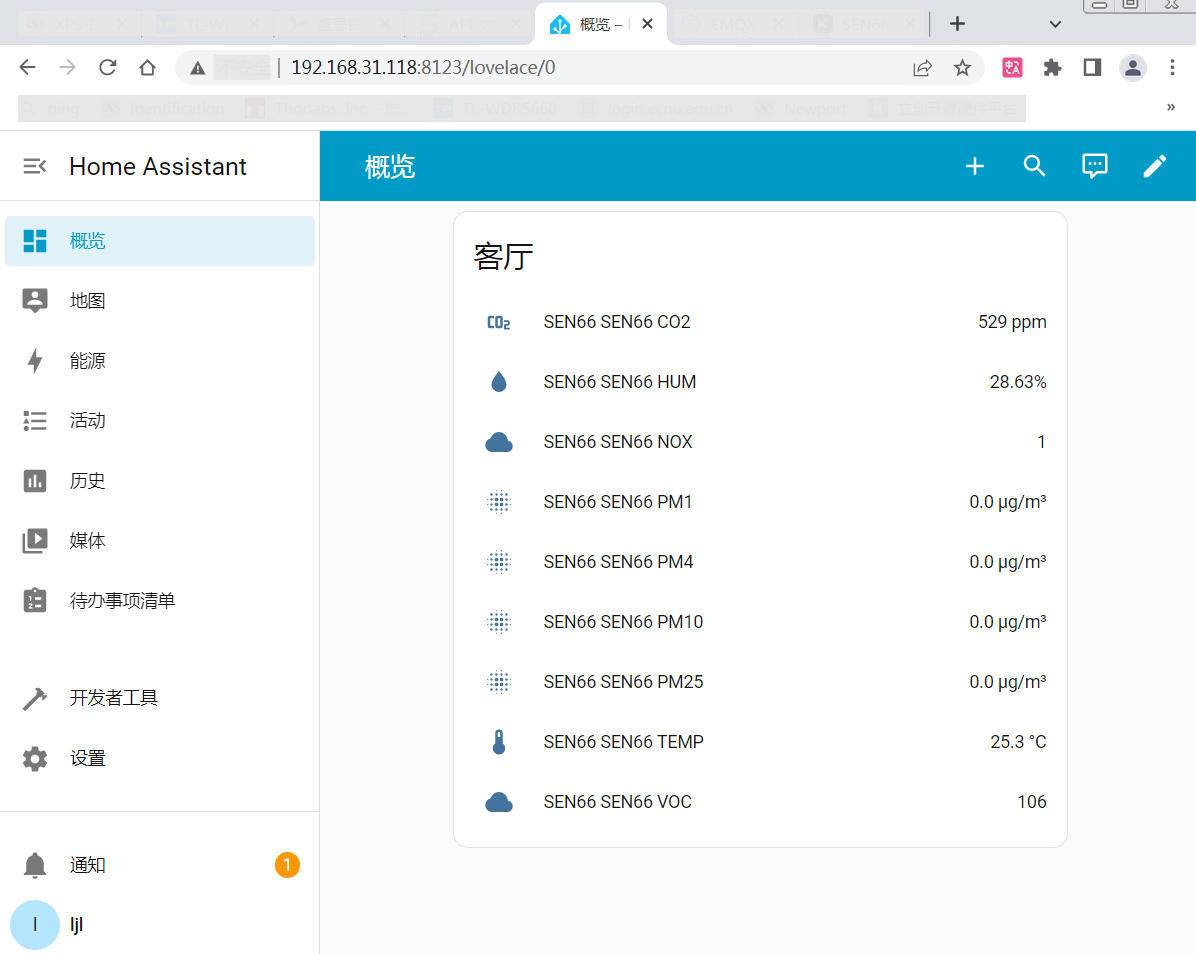

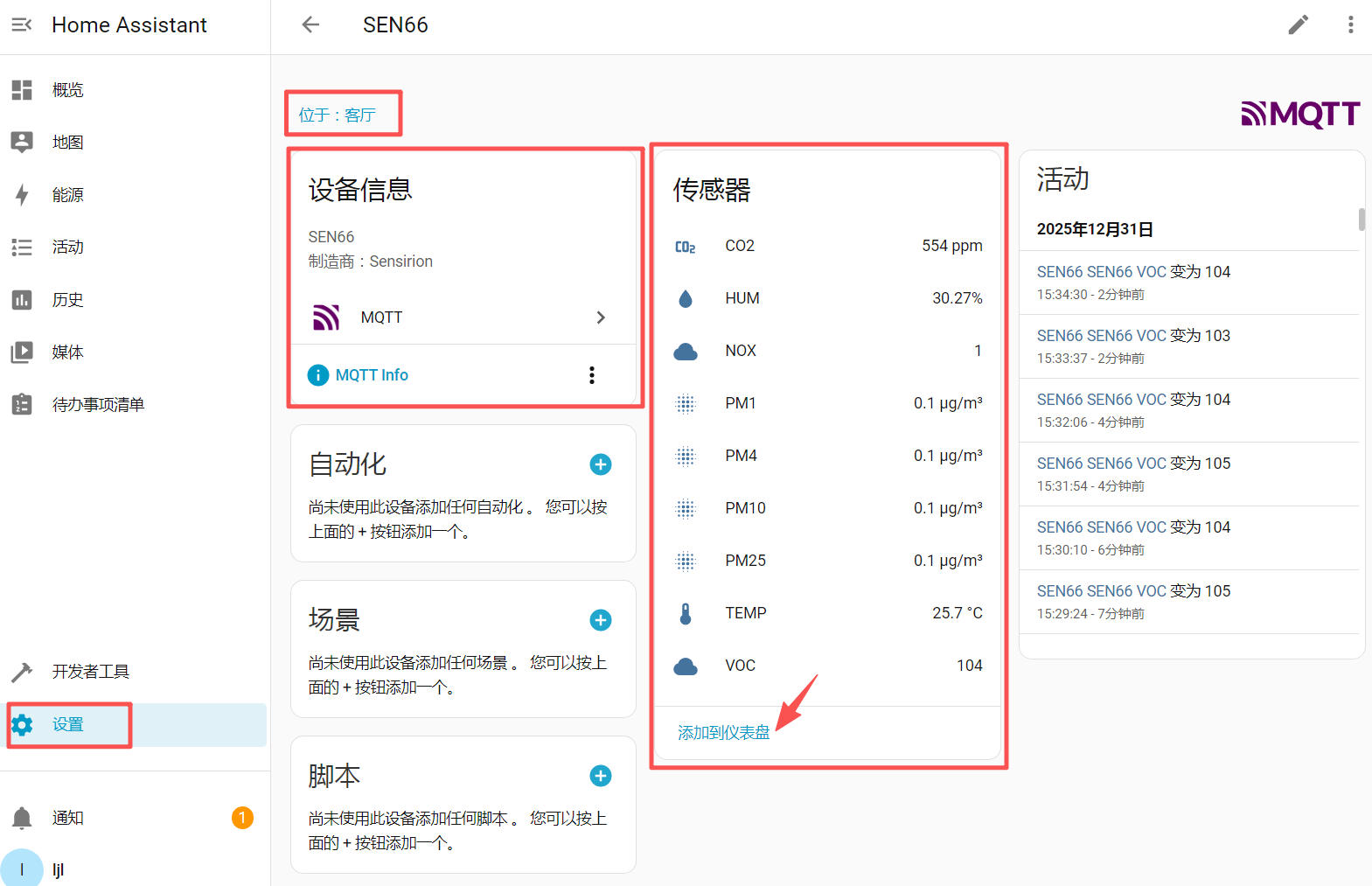

Home Assistant：通过 MQTT 集成，实现 SEN66 传感器数据卡片自动获取，实现物联网环境气体监测。
准备工作
包括硬件连接、软件包安装、Home Assistant 平台搭建等。
硬件连接
默认情况下，SEN66 示例程序设定传感器已连接到端口 /dev/i2c-1 ；
| SEN66 | VisionFive 2 Lite | Note |
|---|---|---|
| SDA (green) | SDA (3) | Serial Data |
| SCL (yellow) | SCL (5) | Serial Clock |
| GND (black) | GND (6) | Ground |
| VCC (red) | 3.3V (1) | Power |

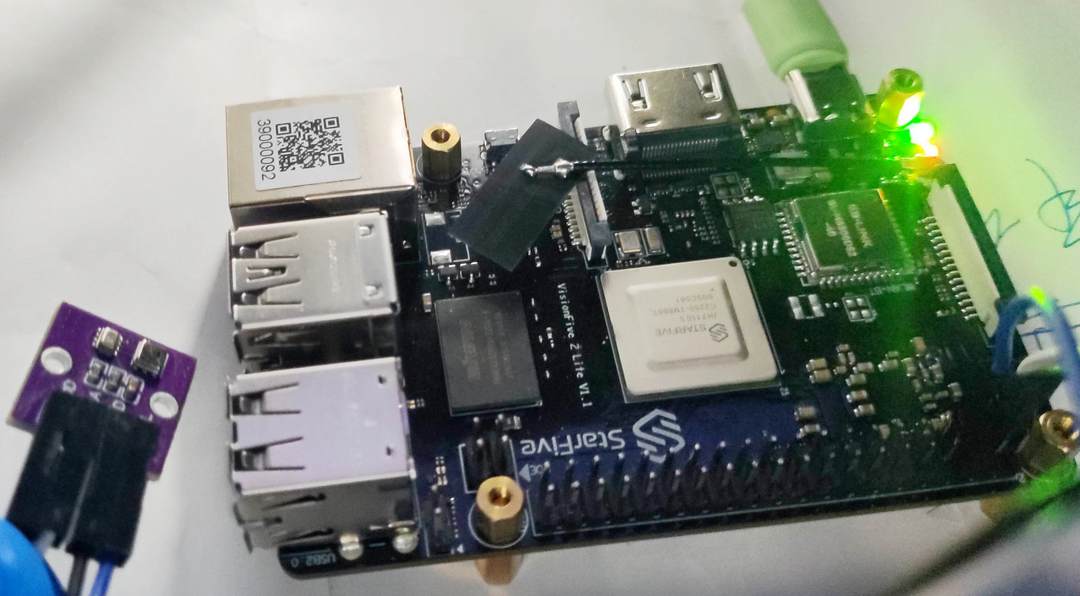

实物图

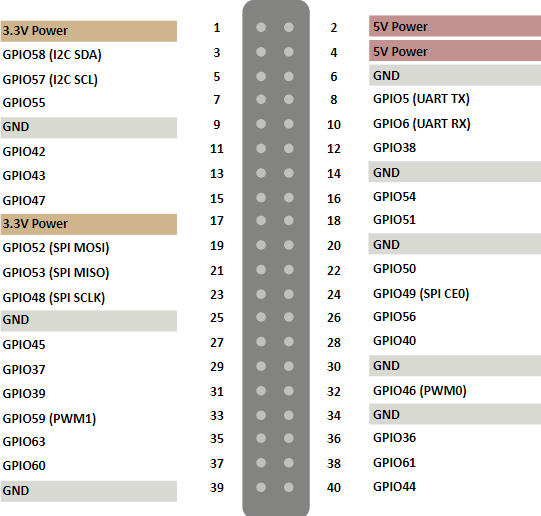

VisionFive2 Lite 40-Pin 接口定义

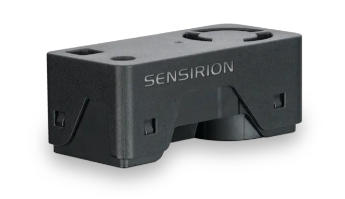

SEN66 引脚

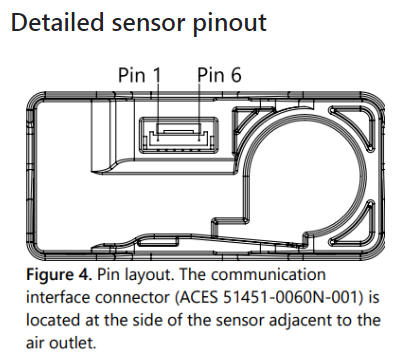

引脚定义及描述
| Pin | Color | Name | Description | Comments |
|---|---|---|---|---|
| 1 | red | VDD | Supply Voltage | 3.3V ±5% |
| 2 | black | GND | Ground | |
| 3 | green | SDA | I2C: Serial data input / output | TTL 5V compatible |
| 4 | yellow | SCL | I2C: Serial clock input | TTL 5V compatible |
| 5 | NC | Do not connect | Ground (Pins 2 and 5 are connected internally) | |
| 6 | NC | Do not connect | Supply voltage (Pins 1 and 6 are connected internally) |
详见：https://github.com/Sensirion/raspberry-pi-i2c-sen66/
软件包安装
终端执行如下指令，安装 Sensirion Sen66 库
sudo pip3 install sensirion_i2c_sen66 --break-system-packages
sudo apt install python3-paho-mqtt
详见：https://sensirion.github.io/python-i2c-sen66/index.html
搭建 Home Assistant 平台
电脑主机安装 Docker 软件；
sudo apt-get update && sudo apt-get upgrade
curl -fsSL https://get.docker.com -o get-docker.sh
sudo sh get-docker.sh
docker version
拉取 EMQX 和 Home Assistant 最新镜像；
sudo docker pull emqx/emqx:latest
sudo docker pull homeassistant/home-assistant:latest
启动 EMQX 和 HA 容器；
docker run -d --name emqx -p 1883:1883 -p 8083:8083 -p 8084:8084 -p 8883:8883 -p 18083:18083 emqx/emqx:latest
docker run -d --restart always --name homeassistant -v /data/homeassistant/config:/config -e TZ=Asia/Shanghai -p 8123:8123 homeassistant/home-assistant:latest
MQTT 客户端

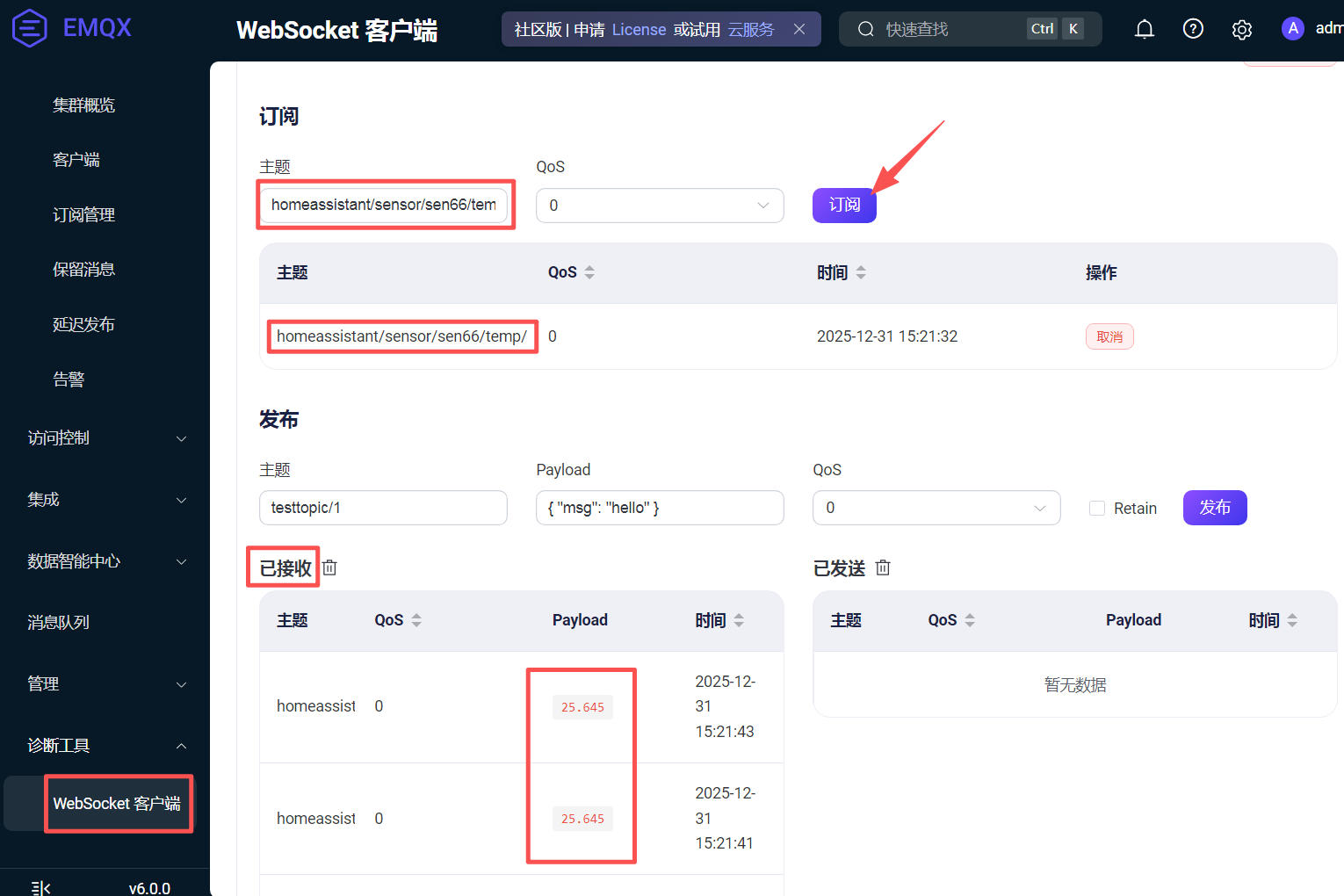

EMQX 创建 MQTT 客户端
-
进入 EMQX 主页，如
http://192.168.31.116:18083； -
依次打开
访问控制-客户端认证-创建-Password-Based-内置数据库- （默认配置）-创建；
创建用户
用户管理-新建用户- 自定义用户名和密码 - 保存.
HA 配置
-
浏览器输入网址
http://<IP>:8123，如192.168.1.107:8123 -
进入 HA 主界面（首次打开需进行注册），输入用户名、密码等信息；
-
配置完成后进入 HA
概览标签页；
工程测试
包括 AHT10和BMP280模块IIC通信测试、SEN66模块驱动测试等。
AHT10 & BMP280
终端执行指令 touch aht20_bmp280_print.py 新建程序文件并添加如下代码
from aht10 import AHT10
from bmp280 import BMP280
import time
while True:
sensor = AHT10(bus=0, address=0x38)
temp, hum = sensor.read()
bmp280 = BMP280(bus=0, address=0x77)
temperature, pressure = bmp280.get_temperature_and_pressure()
print("Temperature: {:.2f} °C Humidity: {:.2f} %RH Pressure: {:.3f} kPa".format(temp, hum, pressure/1000))
time.sleep(2)
AHT10 驱动
"""
AHT10温湿度传感器驱动
"""
import smbus2
import time
class AHT10:
def __init__(self, bus=1, address=0x38):
self.bus = smbus2.SMBus(bus)
self.addr = address
self._initialize()
time.sleep(0.5) # 延长初始化等待时间
def _initialize(self):
"""初始化AHT10，发送0xE10800命令"""
try:
self.bus.write_i2c_block_data(self.addr, 0xE1, [0x08, 0x00])
return True
except:
return False
def read(self):
"""读取一次温湿度测量"""
# 触发测量 0xAC3300
self.bus.write_i2c_block_data(self.addr, 0xAC, [0x33, 0x00])
time.sleep(0.08) # 等待测量完成
# 读取6字节数据
data = self.bus.read_i2c_block_data(self.addr, 0x00, 6)
# 解析数据
hum_raw = ((data[1] << 12) | (data[2] << 4) | (data[3] >> 4))
temp_raw = (((data[3] & 0x0F) << 16) | (data[4] << 8) | data[5])
humidity = hum_raw * 100 / (1 << 20) # 2^20 = 1048576
temperature = temp_raw * 200 / (1 << 20) - 50
return round(temperature, 1), round(humidity, 1)
# 使用示例
def demo(interval=1):
"""连续打印温湿度，interval：采样间隔（秒）"""
sensor = AHT10(bus=0, address=0x38)
while True:
temp, hum = sensor.read()
print(f"Temperature: {temp}°C, Humidity: {hum}%RH")
time.sleep(interval)
BMP280 驱动
import time
import smbus
# BMP280 iic address.
BMP280_I2C_ADDRESS = 0x77 # SDO = 0
# Registers value
BMP280_ID_Value = 0x58 # BMP280 ID
BMP280_RESET_VALUE = 0xB6
# BMP280 Registers definition
BMP280_TEMP_XLSB_REG = 0xFC # Temperature XLSB Register
BMP280_TEMP_LSB_REG = 0xFB # Temperature LSB Register
BMP280_TEMP_MSB_REG = 0xFA # Temperature LSB Register
BMP280_PRESS_XLSB_REG = 0xF9 # Pressure XLSB Register
BMP280_PRESS_LSB_REG = 0xF8 # Pressure LSB Register
BMP280_PRESS_MSB_REG = 0xF7 # Pressure MSB Register
BMP280_CONFIG_REG = 0xF5 # Configuration Register
BMP280_CTRL_MEAS_REG = 0xF4 # Ctrl Measure Register
BMP280_STATUS_REG = 0xF3 # Status Register
BMP280_RESET_REG = 0xE0 # Softreset Register
BMP280_ID_REG = 0xD0 # Chip ID Register
# calibration parameters
BMP280_DIG_T1_LSB_REG = 0x88
BMP280_DIG_T1_MSB_REG = 0x89
BMP280_DIG_T2_LSB_REG = 0x8A
BMP280_DIG_T2_MSB_REG = 0x8B
BMP280_DIG_T3_LSB_REG = 0x8C
BMP280_DIG_T3_MSB_REG = 0x8D
BMP280_DIG_P1_LSB_REG = 0x8E
BMP280_DIG_P1_MSB_REG = 0x8F
BMP280_DIG_P2_LSB_REG = 0x90
BMP280_DIG_P2_MSB_REG = 0x91
BMP280_DIG_P3_LSB_REG = 0x92
BMP280_DIG_P3_MSB_REG = 0x93
BMP280_DIG_P4_LSB_REG = 0x94
BMP280_DIG_P4_MSB_REG = 0x95
BMP280_DIG_P5_LSB_REG = 0x96
BMP280_DIG_P5_MSB_REG = 0x97
BMP280_DIG_P6_LSB_REG = 0x98
BMP280_DIG_P6_MSB_REG = 0x99
BMP280_DIG_P7_LSB_REG = 0x9A
BMP280_DIG_P7_MSB_REG = 0x9B
BMP280_DIG_P8_LSB_REG = 0x9C
BMP280_DIG_P8_MSB_REG = 0x9D
BMP280_DIG_P9_LSB_REG = 0x9E
BMP280_DIG_P9_MSB_REG = 0x9F
class BMP280(object):
def __init__(self, bus=1, address=BMP280_I2C_ADDRESS):
self._address = address
self._bus = smbus.SMBus(bus) # 1: iic编号为1（根据自己的硬件接口选择对应的编号）
# Load calibration values.
if self._read_byte(BMP280_ID_REG) == BMP280_ID_Value: # read bmp280 id
self._load_calibration() # load calibration data
# BMP280_T_MODE_1 << 5 | BMP280_P_MODE_1 << 2 | BMP280_SLEEP_MODE;
# 修复：使用正常的测量模式而不是 0xFF（0xFF 会使传感器进入强制模式但可能不稳定）
# 0x27 表示：温度过采样x1，压力过采样x1，正常模式
ctrlmeas = 0x27
# BMP280_T_SB1 << 5 | BMP280_FILTER_MODE_1 << 2;
config = 0x14
self._write_byte(BMP280_CTRL_MEAS_REG, ctrlmeas) # write bmp280 config
# sets the data acquisition options
self._write_byte(BMP280_CONFIG_REG, config)
# 等待传感器稳定
time.sleep(0.01)
else:
print("Read BMP280 id error!\r\n")
def _read_byte(self, cmd):
return self._bus.read_byte_data(self._address, cmd)
def _read_u16(self, cmd):
LSB = self._bus.read_byte_data(self._address, cmd)
MSB = self._bus.read_byte_data(self._address, cmd+1)
return (MSB << 8) + LSB
def _read_s16(self, cmd):
result = self._read_u16(cmd)
if result > 32767:
result -= 65536
return result
def _write_byte(self, cmd, val):
self._bus.write_byte_data(self._address, cmd, val)
def _load_calibration(self): # load calibration data
"load calibration"
""" read the temperature calibration parameters """
self.dig_T1 = self._read_u16(BMP280_DIG_T1_LSB_REG)
self.dig_T2 = self._read_s16(BMP280_DIG_T2_LSB_REG)
self.dig_T3 = self._read_s16(BMP280_DIG_T3_LSB_REG)
""" read the pressure calibration parameters """
self.dig_P1 = self._read_u16(BMP280_DIG_P1_LSB_REG)
self.dig_P2 = self._read_s16(BMP280_DIG_P2_LSB_REG)
self.dig_P3 = self._read_s16(BMP280_DIG_P3_LSB_REG)
self.dig_P4 = self._read_s16(BMP280_DIG_P4_LSB_REG)
self.dig_P5 = self._read_s16(BMP280_DIG_P5_LSB_REG)
self.dig_P6 = self._read_s16(BMP280_DIG_P6_LSB_REG)
self.dig_P7 = self._read_s16(BMP280_DIG_P7_LSB_REG)
self.dig_P8 = self._read_s16(BMP280_DIG_P8_LSB_REG)
self.dig_P9 = self._read_s16(BMP280_DIG_P9_LSB_REG)
# print(self.dig_T1)
# print(self.dig_T2)
# print(self.dig_T3)
# print(self.dig_P1)
# print(self.dig_P2)
# print(self.dig_P3)
# print(self.dig_P4)
# print(self.dig_P5)
# print(self.dig_P6)
# print(self.dig_P7)
# print(self.dig_P8)
# print(self.dig_P9)
def compensate_temperature(self, adc_T):
"""Returns temperature in DegC, double precision. Output value of "1.23"equals 51.23 DegC."""
var1 = ((adc_T) / 16384.0 - (self.dig_T1) / 1024.0) * (self.dig_T2)
var2 = (((adc_T) / 131072.0 - (self.dig_T1) / 8192.0) *
((adc_T) / 131072.0 - (self.dig_T1) / 8192.0)) * (self.dig_T3)
self.t_fine = var1 + var2
temperature = (var1 + var2) / 5120.0
return temperature
def compensate_pressure(self, adc_P):
"""Returns pressure in Pa as double. Output value of "6386.2"equals 96386.2 Pa = 963.862 hPa."""
var1 = (self.t_fine / 2.0) - 64000.0
var2 = var1 * var1 * (self.dig_P6) / 32768.0
var2 = var2 + var1 * (self.dig_P5) * 2.0
var2 = (var2 / 4.0) + ((self.dig_P4) * 65536.0)
var1 = ((self.dig_P3) * var1 * var1 / 524288.0 +
(self.dig_P2) * var1) / 524288.0
var1 = (1.0 + var1 / 32768.0) * (self.dig_P1)
if var1 == 0.0:
return 0 # avoid exception caused by division by zero
pressure = 1048576.0 - adc_P
pressure = (pressure - (var2 / 4096.0)) * 6250.0 / var1
var1 = (self.dig_P9) * pressure * pressure / 2147483648.0
var2 = pressure * (self.dig_P8) / 32768.0
pressure = pressure + (var1 + var2 + (self.dig_P7)) / 16.0
return pressure
def get_temperature_and_pressure(self):
"""Returns pressure in Pa as double. Output value of "6386.2"equals 96386.2 Pa = 963.862 hPa."""
xlsb = self._read_byte(BMP280_TEMP_XLSB_REG)
lsb = self._read_byte(BMP280_TEMP_LSB_REG)
msb = self._read_byte(BMP280_TEMP_MSB_REG)
adc_T = (msb << 12) | (lsb << 4) | (
xlsb >> 4) # temperature registers data
temperature = self.compensate_temperature(
adc_T) # temperature compensate
xlsb = self._read_byte(BMP280_PRESS_XLSB_REG)
lsb = self._read_byte(BMP280_PRESS_LSB_REG)
msb = self._read_byte(BMP280_PRESS_MSB_REG)
adc_P = (msb << 12) | (lsb << 4) | (
xlsb >> 4) # pressure registers data
pressure = self.compensate_pressure(
adc_P) # pressure compensate
return temperature, pressure
def demo(interval=1):
"""连续打印温度压强，interval：采样间隔（秒）"""
bmp280 = BMP280(bus=4, address=0x77)
while True:
time.sleep(1)
temperature, pressure = bmp280.get_temperature_and_pressure()
print('Temperature = %.2f C Pressure = %.3f kPa' %
(temperature, pressure/1000))
-

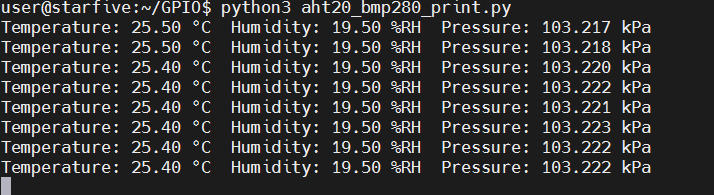

终端执行指令
python3 aht20_bmp280_print.py运行程序； -
连续打印温湿度和气压数据；
MQTT 上传
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
温湿度 + 气压 → MQTT → Home Assistant
传感器：AHT10 + BMP280（I²C 总线 0）
"""
import json
import time
from aht10 import AHT10
from bmp280 import BMP280
import paho.mqtt.client as mqtt
# =============== 参数 ==============
MQTT_BROKER = "192.168.1.107" # EMQX IP
MQTT_PORT = 1883
MQTT_USER = "xxx"
MQTT_PASS = "xxx"
NODE_ID = "bosch" # 设备节点 ID
IIC_BUS = 0 # i2c bus 0
# ===================================
# HA 自动发现主题模板
DISCOVERY_PREFIX = "homeassistant"
# 传感器配置
SENSORS = {
"temp": {"name": "Temperature", "unit": "°C", "dev_cla": "temperature", "ic": "mdi:thermometer"},
"hum": {"name": "Humidity", "unit": "%", "dev_cla": "humidity", "ic": "mdi:water-percent"},
"pres": {"name": "Pressure", "unit": "hPa", "dev_cla": "pressure", "ic": "mdi:gauge"},
}
def publish_discovery(client):
"""向 HA 发送自动发现配置，只需一次即可"""
for key, cfg in SENSORS.items():
topic = f"{DISCOVERY_PREFIX}/sensor/{NODE_ID}/{key}/config"
payload = {
"name": cfg["name"],
"unit_of_measurement": cfg["unit"],
"device_class": cfg["dev_cla"],
"icon": cfg["ic"],
"state_topic": f"{DISCOVERY_PREFIX}/sensor/{NODE_ID}/{key}/state",
"unique_id": f"{NODE_ID}_{key}",
"device": {
"identifiers": [NODE_ID],
"name": "Sensors",
"model": "AHT20_BMP280",
"manufacturer": "Bosch",
},
}
client.publish(topic, json.dumps(payload), retain=True)
def main():
client = mqtt.Client()
client.username_pw_set(MQTT_USER, MQTT_PASS)
client.connect(MQTT_BROKER, MQTT_PORT, 60)
client.loop_start()
# 上电后先发送一次发现配置
publish_discovery(client)
# 传感器初始化
aht = AHT10(bus=IIC_BUS, address=0x38)
bmp = BMP280(bus=IIC_BUS, address=0x77)
while True:
try:
temp, hum = aht.read()
_, pressure = bmp.get_temperature_and_pressure() # 温度 AHT10 采集
pressure_hpa = pressure * 10 # kPa → hPa
print(f"Temp: {temp:.2f} °C Hum: {hum:.2f} % Pres: {pressure_hpa:.2f} hPa")
client.publish(f"{DISCOVERY_PREFIX}/sensor/{NODE_ID}/temp/state", f"{temp:.2f}")
client.publish(f"{DISCOVERY_PREFIX}/sensor/{NODE_ID}/hum/state", f"{hum:.2f}")
client.publish(f"{DISCOVERY_PREFIX}/sensor/{NODE_ID}/pres/state", f"{pressure_hpa:.2f}")
except Exception as e:
print("读取/发送失败:", e)
time.sleep(2) # 2 s 上报一次
if __name__ == "__main__":
main()
保存代码；
SEN66
包括 Sen66 传感器 python 驱动代码、终端打印 PM 、CO2、NOx 浓度数据等。
介绍
SEN66 是 Sensirion 盛思锐公司推出的 PM, RH/T, VOC, Nox 和 CO2 测量传感器平台，可实现空气质量传感数据采集。
-
外形紧凑、集成多个传感器、可测量 9 种环境参数 (PM1, PM2.5, PM4, PM10, T, RH, VOC指数，NOx指数，CO2) ；
-
核心组件是 SPS6x —— 小型化的、基于 mems 技术的颗粒物传感器；
-
适配于需要符合不同室内空气质量标准的应用，如RESET®，WELL建筑标准™和California Title 24建筑能效标准。
Python 代码
终端执行 touch sen66.py 新建文件并添加如下代码
#!/usr/bin/env python
# -*- coding: utf-8 -*-
#
# (c) Copyright 2025 Sensirion AG, Switzerland
#
# THIS FILE IS AUTOMATICALLY GENERATED!
#
# Generator: sensirion-driver-generator 1.1.2
# Product: sen66
# Model-Version: 1.6.0
#
import argparse
import time
from sensirion_i2c_driver import LinuxI2cTransceiver, I2cConnection, CrcCalculator
from sensirion_driver_adapters.i2c_adapter.i2c_channel import I2cChannel
from sensirion_i2c_sen66.device import Sen66Device
parser = argparse.ArgumentParser()
parser.add_argument('--i2c-port', '-p', default='/dev/i2c-1')
args = parser.parse_args()
with LinuxI2cTransceiver(args.i2c_port) as i2c_transceiver:
channel = I2cChannel(I2cConnection(i2c_transceiver),
slave_address=0x6B,
crc=CrcCalculator(8, 0x31, 0xff, 0x0))
sensor = Sen66Device(channel)
sensor.device_reset()
time.sleep(1.2)
serial_number = sensor.get_serial_number()
print(f"serial_number: {serial_number}; "
)
sensor.start_continuous_measurement()
for i in range(100):
try:
time.sleep(1.0)
(mass_concentration_pm1p0, mass_concentration_pm2p5, mass_concentration_pm4p0, mass_concentration_pm10p0, humidity,
temperature, voc_index, nox_index, co2
) = sensor.read_measured_values()
print(f"mass_concentration_pm1p0: {mass_concentration_pm1p0}; "
f"mass_concentration_pm2p5: {mass_concentration_pm2p5}; "
f"mass_concentration_pm4p0: {mass_concentration_pm4p0}; "
f"mass_concentration_pm10p0: {mass_concentration_pm10p0}; "
f"humidity: {humidity}; "
f"temperature: {temperature}; "
f"voc_index: {voc_index}; "
f"nox_index: {nox_index}; "
f"co2: {co2}; "
)
except BaseException:
continue
sensor.stop_measurement()
保存代码。
详见：https://github.com/Sensirion/python-i2c-sen66
效果
终端执行 python sen66.py 运行程序；
打印设备序列号、环境参数（PM1.0、PM2.5、PM4.0、PM10.0、湿度、温度、VOC指数、NOx指数、二氧化碳浓度）
关键函数
read_measured_values ( )
返回测量值。
-
返回 mass_concentration_pm1p0：
PM1.0 [µg/m³]
-
返回 mass_concentration_pm2p5：
PM2.5 [µg/m³]
-
返回 mass_concentration_pm4p0：
PM4.0 [µg/m³]
-
返回 mass_concentration_pm10p0：
PM10.0 [µg/m³]
-
返回环境湿度：
RH [%]
-
返回环境温度：
T [°C]
-
返回 voc_index：
VOC 指数
-
返回 nox_index：
NOx 指数
-
返回二氧化碳：
二氧化碳浓度 [ppm]
详见：https://sensirion.github.io/python-i2c-sen66/index.html
MQTT
通过 MQTT 协议实现传感器数据上传，并使用 EMQX 的 WebSocket 工具接收 JSON 报文。

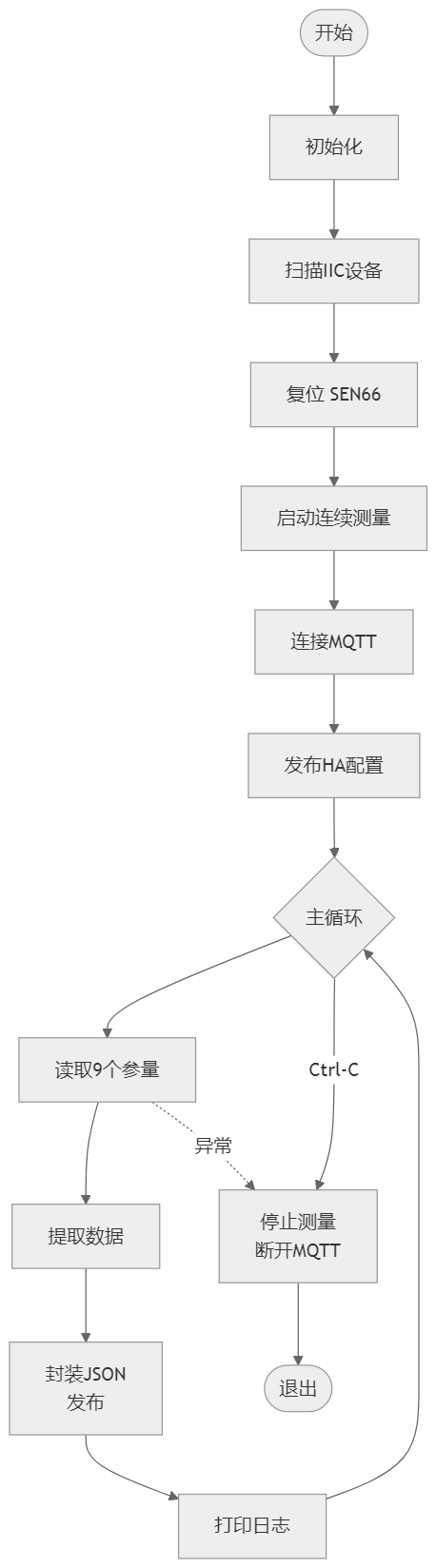

流程图
代码
终端执行 touch sen66_mqtt_ha.py 指令新建程序文件，并添加如下代码
#!/usr/bin/env python3
"""
SEN66 → MQTT → Home Assistant
"""
import argparse
import time
import json
import socket
import paho.mqtt.client as mqtt
from sensirion_i2c_driver import LinuxI2cTransceiver, I2cConnection, CrcCalculator
from sensirion_driver_adapters.i2c_adapter.i2c_channel import I2cChannel
from sensirion_i2c_sen66.device import Sen66Device
# ---------- 参数 ----------
I2C_PORT = '/dev/i2c-1'
MQTT_BROKER = '192.168.31.117' # MQTT Broker IP
MQTT_PORT = 1883
MQTT_USER = 'xxx'
MQTT_PASS = 'xxx'
MQTT_CLIENT_ID = f'sen66_{socket.gethostname()}'
BASE_TOPIC = 'homeassistant/sensor/sen66'
DEVICE_NAME = 'SEN66'
DEVICE_ID = 'sen66_01'
# -----------------------------
# HA 自动发现的通用设备段
DEVICE_INFO = {
"name": DEVICE_NAME,
"ids": [DEVICE_ID],
"mdl": "SEN66",
"mf": "Sensirion"
}
# 上传 9 个参量：topic_suffix, unit, icon, class
QUANTITIES = [
("pm1", "μg/m³", "mdi:blur", "pm1"),
("pm25", "μg/m³", "mdi:blur", "pm25"),
("pm4", "μg/m³", "mdi:blur", "pm25"),
("pm10", "μg/m³", "mdi:blur", "pm10"),
("hum", "%", "mdi:water", "humidity"),
("temp", "°C", "mdi:thermometer", "temperature"),
("voc", " ", "mdi:cloud", None),
("nox", " ", "mdi:cloud", None),
("co2", "ppm", "mdi:molecule-co2", "carbon_dioxide"),
]
def publish_discovery(client):
"""向 HA 发送自动发现配置，只需一次即可持久化"""
for qty, unit, icon, dev_cla in QUANTITIES:
topic = f"{BASE_TOPIC}/{qty}/config"
payload = {
"name": f"{DEVICE_NAME} {qty.upper()}",
"state_topic": f"{BASE_TOPIC}/{qty}/state",
"unit_of_measurement": unit,
"icon": icon,
"device": DEVICE_INFO,
"unique_id": f"{DEVICE_ID}_{qty}",
}
if dev_cla:
payload["device_class"] = dev_cla
client.publish(topic, json.dumps(payload), retain=True)
def main():
parser = argparse.ArgumentParser()
parser.add_argument('--i2c-port', '-p', default=I2C_PORT)
args = parser.parse_args()
# 连接 MQTT
client = mqtt.Client(client_id=MQTT_CLIENT_ID)
client.username_pw_set(MQTT_USER, MQTT_PASS)
client.connect(MQTT_BROKER, MQTT_PORT, keepalive=60)
client.loop_start()
with LinuxI2cTransceiver(args.i2c_port) as i2c_transceiver:
channel = I2cChannel(I2cConnection(i2c_transceiver),
slave_address=0x6B,
crc=CrcCalculator(8, 0x31, 0xff, 0x0))
sensor = Sen66Device(channel)
sensor.device_reset()
time.sleep(1.2)
print("SEN66 serial:", sensor.get_serial_number())
sensor.start_continuous_measurement()
# 发送一次自动发现配置
publish_discovery(client)
try:
while True:
time.sleep(2) # 2 s 上报一次
try:
vals = sensor.read_measured_values()
# vals 顺序与官方 demo 一致
pm1 = vals[0].value
pm25 = vals[1].value
pm4 = vals[2].value
pm10 = vals[3].value
hum = vals[4].value
temp = vals[5].value
voc = int(vals[6].value)
nox = int(vals[7].value)
co2 = int(vals[8].value)
#----------------------------------
data = {
"pm1": float(pm1),
"pm25": float(pm25),
"pm4": float(pm4),
"pm10": float(pm10),
"hum": float(hum),
"temp": float(temp),
"voc": int(voc),
"nox": int(nox),
"co2": int(co2),
}
# 分开发，方便 HA 各自解析
for qty, val in data.items():
client.publish(f"{BASE_TOPIC}/{qty}/state", val)
print("published:", data)
except Exception as e:
print("read error:", e)
continue
except KeyboardInterrupt:
print("Ctrl-C 退出")
finally:
sensor.stop_measurement()
client.loop_stop()
client.disconnect()
if __name__ == '__main__':
main()
保存代码。
测试
-
终端执行
python sen66_mqtt_ha.py指令运行程序； -
连接 MQTT 服务器并上传数据；
-
终端打印 JSON 格式报文；
EMQX 测试
-
进入 EMQX 网页控制界面，打开侧边标签栏，选择
诊断工具-WebSocket 客户端； -
输入用户名和密码，连接 MQTT 服务器；
-
在订阅版块输入目标传感器主题，如
homeassistant/sensor/sen66/temp/state，点击订阅按钮； -
在已接收版块可看到传感器数据，两秒更新一次；
Home Assistant
通过 MQTT 协议上传 SEN66 传感器数据至 Home Assistant 平台，实现远程 IoT 数据实时监测。
参数配置
打开 Home Assistant 网页界面 http://192.168.31.118:8123 ，在 设置 - 设备与服务 标签页添加 MQTT 集成；
- 输入 EMQX 客户端信息，刷新页面，可看到新增的传感器；
- 点击 SEN66 传感器，进入详情页面，获取设备信息；
- 点击编辑按钮，配置所在区域等信息，并添加至仪表盘；
效果
进入 概览 页面，刷新网页，可获得实时传感器数据
- 点击目标传感器，可获得历史数据及演化曲线
总结
本文介绍了昉·星光 VisionFive2 Lite 单板计算机结合盛思锐SEN66传感器套件实现环境气体监测，并通过 MQTT 协议上传至 Home Assistant 智能家居平台，实现物联网环境监测终端的项目设计，为相关产品在物联网领域的快速开发和应用设计提供了参考。
